TMD

Techno Module Designer

The first step to quickly design any panel board!


Pitch More - Design Less


We built TMD so you can put your effort into the pitch.

TMD lets you draw and quote a panel board within minutes. Easy, quick and convenient. You´ll get bill of materials, 2D and 3D drawings, heat temperature calculation and even an estimate on the assembly time.

It allows you to spend less time on designing and more time on pitching.


Software Features

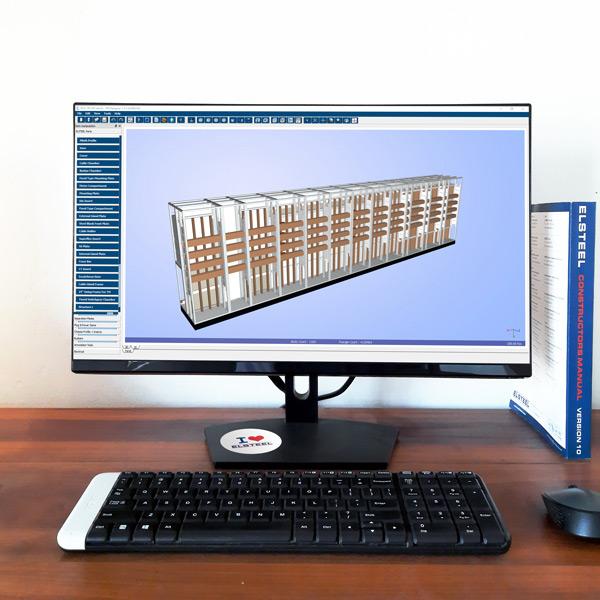

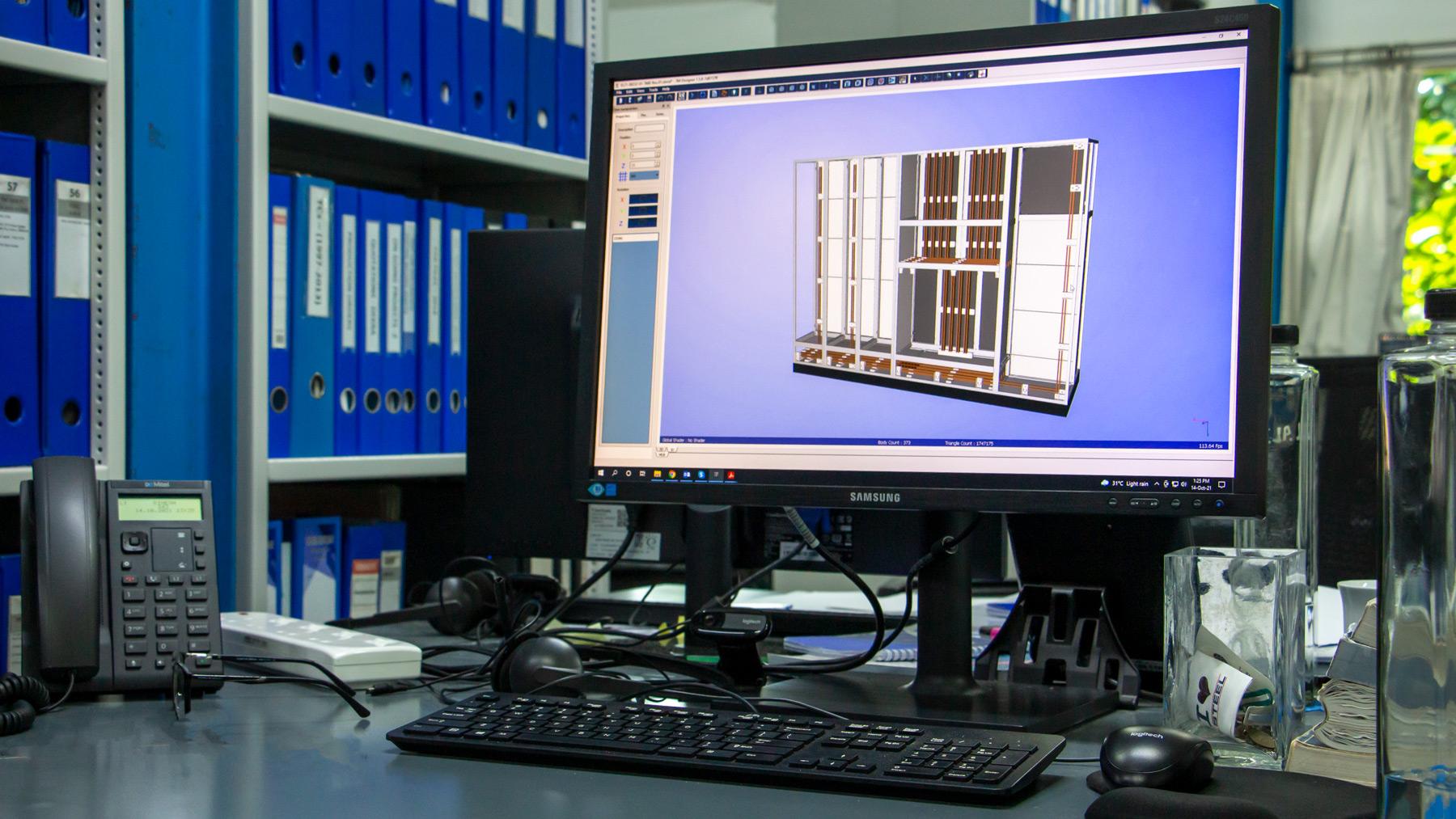

Design in 2D & 3D

Quickly render 3D images at the click of a button

Generate a Bill of Materials

Generate a Bill of Materials based on your design

Estimate Build Time

Calculate the estimated build time of your panel board

Estimate Copper Weight

Estimate how much copper your project will require

Export Drawings

Export drawings to other 3D design programs

100% Free

If you're an ELSTEEL customer, TMD is free for you to use

TMD V2.0

Version 2.0 and higher requires your company to have a valid NDA in place and access to our client portal. Please contact your area sales manager, or fill in the form below for further information.

Legacy Downloads

Downloads on this page are unsupported versions, may contain out-of-date pricing and should be used only for demonstration or training purposes.

TMD Version : 1.5.30 (Online)

Published on: 10-January-2024
File Size : 20.5MB

Download

TMD Version : 1.5.30 (Off-line)

Published on: 10-January-2024
File Size : 332 MB

Download

Version Control

Take a look under the hood of TMD
